    SMA Connector

    Ask Lasest Price
    Brand Name : J&L
    Model Number : SMA connector
    Certification : ROHS ,CE.UL
    Price : can be negotiated
    Delivery Time : 7-15 days
    Payment Terms : T/T full payment before production
    Supply Ability : 1000000pcs/M
    • Product Details
    • Company Profile

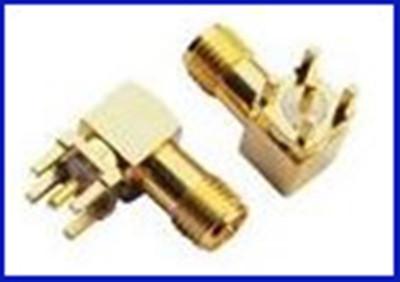

    SMA Connector

    SMA Connector


    Interface : Female
    Brand : J&L
    Connector Impedance : 50 ohm
    Cable Impedance : 50 ohm
    RF Operating Voltage , maximum(vrms) :707 V
    DC Test Voltage : 2000V
    Outer Contact Resistance , maximum : 0.3 mOhm
    Inner Contact Resistance , maximum : 2 mOhm
    Insulation Resistance , minimum : 5000 mOhm
    Average Power : 0.6 kW @ 900 MHz
    Peak Power , maximum : 10 kW
    Insertion Loss , typical : 0.08 Db
    VSWR Straight : 1.163(0.8-2.5GHz)
    Shielding Effectivenss : 110Db
    Outer Contact Attachment Method : Selfflare
    Inner Contact Attachment Method : Push fit
    Outer Contact Plating : Trimetal /Cu Sn Zn
    Inner Contact Plating: Silver
    Insulation : PTFE
    O-ring : Silicone Rubber
    Attachment Durability : 25cycles
    Interface Durability : 500cycles
    Interface Durability Method : IEC 6116916: 9.5
    Connector Retention Tensile Force : 890 N /200
    Connector Retention Torque : 5.42 Nm/48.00 in 1B
    Pressurizable : No
