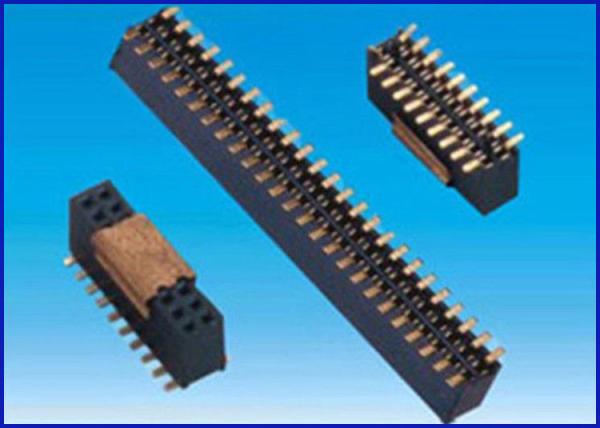

1.27mm Female Header Connector

    Buy cheap 1.27mm Female Header Connector from wholesalers

    Buy cheap 1.27mm Female Header Connector from wholesalers
    • Buy cheap 1.27mm Female Header Connector from wholesalers

    1.27mm Female Header Connector

    Ask Lasest Price
    Brand Name : J&L
    Delivery Time : 7-15 days
    Payment Terms : T/T, Western union, Paypal
    Certification : ROHS ,CE.UL
    Supply Ability : 1000000pcs/M
    • Product Details
    • Company Profile

    1.27mm Female Header Connector


    Female header

    Product name: female header

    Female header pitch: 0.8, 1.0, 1.27, 2.00, 2.54, 3.69, 5.0mm

    Plastic height: 0.8, 1.0, 1.27, 2.00, 2.54, 3.69, 5.0mm, SMD or DIP

    Position: 2-100P

    Material: 1. Housing: PA-6T, PA-9T or LCP

    2. Pin: Copper Alloy, Plating Tin or Gold.

    3. Contact Material: Brass

    4. Contact plating: tin, gold, silver

    Specifications: 1. Current Rating: 3A per Pin

    2. Dielectric Withstanding Voltage: 1000V AV/60s.

    3. Insulation Resistance: 1000MΩMinimum.

    4. Contact Resistance: 20mΩ Maximum.

    5. Recommend Wave (DIP Type) or Reflow (SMT Type)

    6. Soldering Temperature: 260℃ 3~5s.

    7. Recommend PCB Thickness=1.6mm.

    8. Temperature Range:-40~105℃

    Packing Type: Tube, Tape On Reel, Polybag

    Delivery: 4-5 days

    Loading Port: Shenzhen, Hongkong

    Business Term: FOB

    Payment Term: T/T, Western union, Paypal

    Minimum order: 5k pcs

    Free sample or Not: Support free Samples (5-10pcs standard), freight collected

    Benefits: 1. Best quality, all the components are made by ourself.

    2. Fast delivery: 4-5 days

    3. Best service

    4. Cheapest price


    Quality 1.27mm Female Header Connector for sale
